Description

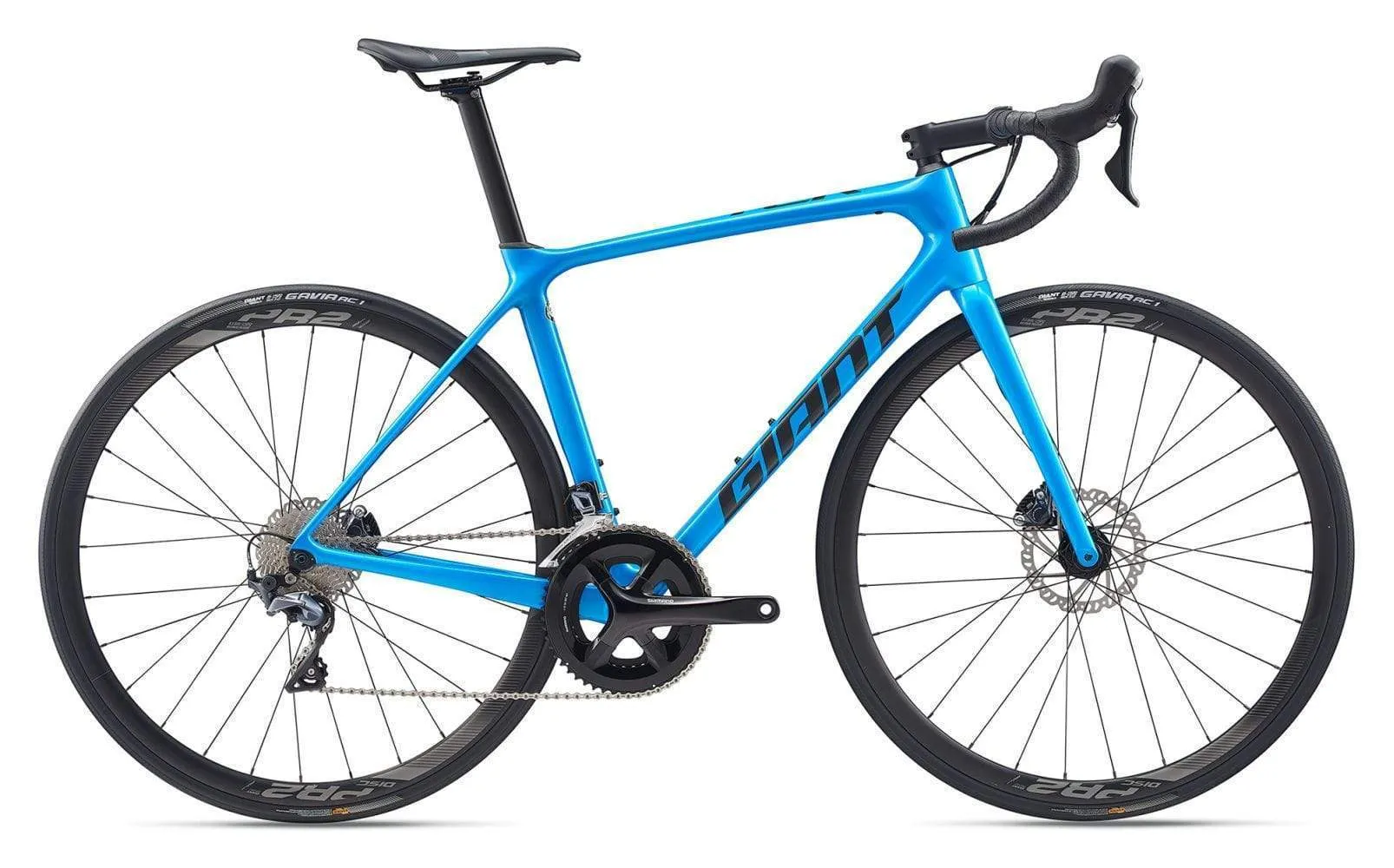

Training, racing, pushing it to the limit. Whether you’re attacking the field or digging deep for a new PR, the lightweight and efficient TCR Advanced Disc with integrated disc brake technology delivers total performance on the road.
Designed with Compact Road geometry and built with Giant’s Advanced-grade composite frame material, the TCR Advanced Disc delivers the best on-the-road efficiency of any bike in its class. The Variant seatpost adds just enough compliance to give it a balanced, race-tuned feel on the road. Our tubeless WheelSystem delivers speed and efficiency with a smoother ride and a reduced risk of flats. And with its integrated disc-brake technology, including flat mounts and 12mm front and rear thru-axles, it’s an all-weather, all-conditions race machine to keep you at the front of the pack.
Road racing efficiency
With one of the highest pedaling stiffness-to-weight ratios of any bike in its class, this frameset is engineered to give competitive road riders superior climbing efficiency, sprint stiffness and all-rounder capabilities.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and thru-axles boost stiffness and improve overall handling.
Speed and compliance
The Variant composite seatpost and Giant WheelSystem with tubeless tires combine for a smooth ride and low rolling resistance.
Specifications
Sizes | XS, S, M, ML, L, XL |
---|---|
Colors | Metallic Blue / Gunmetal Black |
Frame | Advanced-Grade Composite, disc |
Fork | Advanced-Grade Composite, disc |
Shock | N/A |
Handlebar | Giant Contact |
Stem | Giant Contact |
Seatpost | Giant Variant, composite |
Saddle | Giant Contact (forward) |
Pedals | N/A |
Shifters | Shimano Ultegra |
Front Derailleur | Shimano Ultegra |
Rear Derailleur | Shimano Ultegra |
Brakes | Shimano Ultegra hydraulic |
Brake Levers | Shimano Ultegra hydraulic |
Cassette | Shimano 105, 11x30 |
Chain | KMC X11EL-1 |
Crankset | Shimano RS-510, 36/52 |
Bottom Bracket | Shimano, press fit |
Rims | Giant PR-2 Disc wheelset |
Hubs | Giant PR-2 Disc wheelset, 12mm thru-axle |
Spokes | Giant PR-2 Disc wheelset |
Tires | Giant Gavia Course AC 1, tubeless, 700x25, folding |
Geometry
XS | S | M | ML | L | XL | ||
---|---|---|---|---|---|---|---|
A | SEAT TUBE LENGTH (inch) | 16.7 | 17.5 | 18.5 | 19.7 | 20.7 | 21.7 |
B | SEAT TUBE ANGLE | 74.5° | 73.5° | 73.0° | 73.0° | 73.0° | 72.0° |
C | TOP TUBE LENGTH (inch) | 20.3 | 21.1 | 21.7 | 22.4 | 22.8 | 23.8 |
D | HEAD TUBE LENGTH (inch) | 4.8 | 5.2 | 5.8 | 6.6 | 7.4 | 8 |
E | HEAD TUBE ANGLE | 71.0° | 72.5° | 73.0° | 73.0° | 73.0° | 73.0° |
F | FORK RAKE (inch) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
G | TRAIL (inch) | 2.8 | 2.4 | 2.2 | 2.2 | 2.2 | 2.2 |
H | WHEELBASE (inch) | 38.3 | 38.2 | 38.4 | 39.3 | 39.6 | 40.2 |
I | CHAIN STAY LENGTH (inch) | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 |
J | BOTTOM BRACKET DROP (inch) | 2.8 | 2.7 | 2.7 | 2.6 | 2.6 | 2.6 |
K | STACK (inch) | 20.4 | 20.8 | 21.5 | 22.1 | 22.9 | 23.4 |
L | REACH (inch) | 14.6 | 14.9 | 15.1 | 15.7 | 15.8 | 16.2 |
M | STAND OVER HEIGHT (inch) | 28.5 | 29.2 | 30.1 | 31 | 31.7 | 32.4 |
N | HANDLEBAR WIDTH (inch) | 15.7 | 15.7 | 16.5 | 16.5 | 17.3 | 17.3 |
O | STEM LENGTH (inch) | 3.1 | 3.5 | 3.9 | 4.3 | 4.3 | 4.7 |
P | CRANK LENGTH (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
